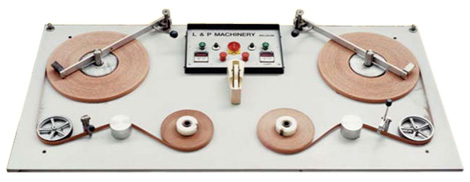

Double rewind table
The double rewind table is used to rewind rolls of 200m into smaller rolls of 25, 50 or 100m. The roll can be packed at the same time. The double rewind table needs an operator. It goes faster than on the slitter and gives it more capacity.
- 2 adjustable electronic counters
- winding off roll: min. dia 40 mm - max dia 760 mm
- rewinder: min dia to be specified - max dia 490 mm
- 2 motors: 0,37 kW
- voltage: 220 V
- speed: 40 to 200 m/minute (no speed adjustments)
- capacity: 48000 m/day - for rolls of 200 m into 50 m rolls (adjustable)
